Manufacturer: Testo
Model: 480
The Testo 480 features a built-in, high-precision differential pressure sensor, suitable for applications such as Pitot tube measurements, filter checks, and cleanroom monitoring. Its wide range of compatible probes allows measurement of the following parameters:
Air velocity and air volume (e.g., for fume hood testing)
Temperature
Relative humidity
Differential and absolute pressure
CO₂ concentration
Illuminance
PMV/PPD (comfort index)
Radiant heat
Turbulence intensity
WBGT index (heat stress)
The instrument can be customized with various optional probes and accessories (e.g., a wireless printer for on-site reporting).
Technical Specifications
Temperature Measurement
Pt100 Sensor
Measuring range: –100…+400 °C
Resolution: 0.01 °C
TC Type K (NiCr-Ni) Sensor
Measuring range: –200…+1370 °C
Accuracy: ±(0.3 °C + 0.1% of measured value)
Resolution: 0.1 °C
Relative Humidity (Capacitive Sensor)
Measuring range: 0…100 %RH
Resolution: 0.1 %RH
Air Velocity – Vane Anemometer
Ø 16 mm: 0.6…50 m/s | Resolution: 0.1 m/s
Ø 100 mm: 0.1…15 m/s | Resolution: 0.01 m/s
Air Velocity – Hot-wire Sensor
Measuring range: 0…20 m/s
Resolution: 0.01 m/s
CO₂ Concentration (Ambient Air)
Measuring range: 0…10,000 ppm
Resolution: 1 ppm
Comfort Level Measurement
Measuring range: 0…5 m/s
Resolution: 0.01 m/s
Differential Pressure – Built-in Piezoresistive Sensor
Measuring range: –100…+100 hPa
Accuracy:
0…25 hPa: ±(0.3 Pa + 1% of measured value)
25.001…100 hPa: ±(0.1 hPa + 1.5% of measured value)
Resolution: 0.001 hPa
Illuminance
Measuring range: 0…100,000 Lux
Resolution: 1 Lux
Absolute Pressure (Internal or External Probe)
Measuring range: 700…1100 hPa
Accuracy: ±3 hPa
Resolution: 0.1 hPa
General Technical Data
Weight: 435 g
Operating temperature: 0…+40 °C
Storage temperature: –20…+60 °C
Protection class: IP30
Connectable probes: 2 x TC Type K, 1 x differential pressure (internal), 3 x digital probes
Compliance: Directive 2004/108/EC
Battery life: approx. 17 hours (at 50% display brightness, without probes)
Display: Color graphic display
Power supply: Built-in rechargeable battery, mains charger for long-term measurements
Data transfer: USB cable or SD card
Memory capacity: 60,000,000 measured values
Learn More
€3,400Measuring table, measuring instrument, granite prism table dimensions: 2700x1360x500mm fixing slots: 3pcs, 35x50mm Learn More

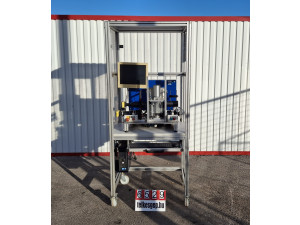

€3,000Telecentric Measuring Machine, Optical Measuring Machine, Part Measuring Machine, Profile Projector, Used Machine Overall Dimensions: Length: 910 mm Width: 700 mm Height: 2100 mm Weight: 155 kg Electrical Specifications: Voltage: 230V Frequency: 50Hz Workpiece Clamping Range: 0–230 mm Cameras: Manufacturer: Cognex Corporation Model: 821-0034-1R Rev B Manufacturer: Vision Control Model: T201/0.12 Applications: This machine is ideal for precision measurement and quality control of workpieces, especially in industries where accurate dimension verification and defect detection are crucial (e.g., automotive, electronics, production lines). The advanced machine vision technology of Cognex and Vision Control cameras ensures fast and reliable measurements. Learn More
